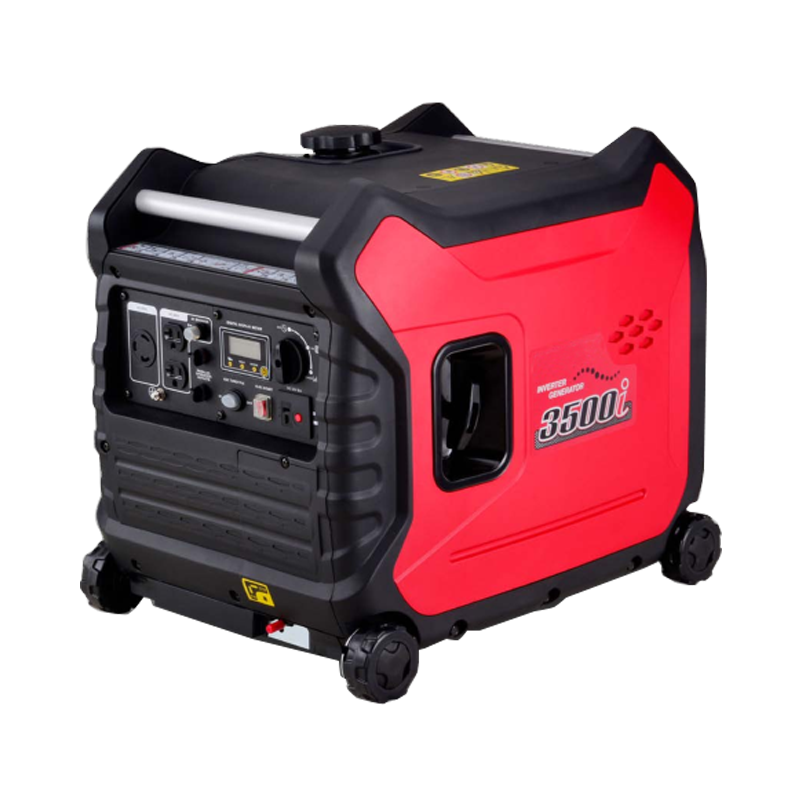

3.0KW Inverter Generator Powered by 212CC Petrol Engine
Features
■ Ultra low noise Moving parts are lightweight and reduce vibration; at the same time, new sound-absorbing materials are used; the air duct of the whole machine is optimized to reduce exhaust noise, and the noise is 1~2dBA lower than similar products.
■ Easy to start High-energy ignition, reduce starting torque,easy start within two times at - 10℃~40℃.
■ Easy to use The quiet frequency conversion series can be equipped with Bluetooth, parallel,DC and USB interfaces, equipped with oil and spark plug observation windows, which are more convenient to operate.
■ Small size, light weight Compared with similar products in the market, GR2300iS and GR2500iS:10.5% smaller on average 17% lighter on average Power-to-weight ratio is 27% higher than average.
■ Energy-saving,fuel saving The ECO mode is energy-saving and fuel-effificient, and the average running time is 63.5% longer than similar products. Features
■ High load start The highest starting power and the best load starting ability in the industry
Production line
Parameter
| Engine model | FP170F-3 |
| Engine type | Single cylinder,4stroke, forced cooling ,OH |
| Power output (kW/rpm) | 4.5/3600 |
| Bore×Stroke (mm) | 70*55 |
| Displacement (cc) | 212 |
| Compression ratio | 8.5:1 |
| Oil capacity (L) | 0.6 |
| Fuel tank capcity (L) | 9 |
| Fuel consumption (g/kW.h) | ≤ 395 |
| Continuing time (hr) | 5 |
| Rated frequency (Hz) | 50/60 |
| Rated voltage (V) | 230/120/100 |
| Net weight (kg) | 34 |
| Electric Power Type | FM-SPWM III |
| AC Power Quality | ISO8528 G2 |
| Rated output (kW) | 3 |
| Max output (kW) | 3.3 |
| Power factor | 1 |
| DC voltage (V) | 12 |
| DC current (A) | 8 |
| Starting Type | Recoil start/Electric start |
| Overload protection Type | DC:non-fuse over-current protector |
| AC:Inverter over-current protection program control | |
| Noise dB(≤ 7m) | ≤ 65 |
| Dimension(L × W × H)mm | 580×440×510 |
| Package Dimension(L × W × H)mm | 605×465×535 |
Producion line
Why choose us
Professional:We have more than 10 years experience in general industry.
And we cooperate with TTI, Generac ......
OEM/ODM: We can provide the OEM/ODM serive.
Resoureful: We have a factory in Vietam for better service.
Own location advantage as concentrating various general industry source in Chongqing.
FAQ
| Q1: Can we place a trial order to do some test? | |
| A: Sure, we have tested our products for many terms, also you can do more tests. Generally, trial order is also welcomed. We would like more new customers to place trial order. | |
| Q2: Do you accept OEM order? | |
| A: Yes, of course. We provide various OEM services. You can customize your favorite models or design a new model with our professional technological support. Our R&D department and manufacturing department will do together to ensure the quality and on time delivery. | |
| Q3: What is your terms of payment? | |
| A: T/T, L/C at sight, and Western Union are available for our company. | |
| Q4: What is yoUr terms of delivery? | |
| A: EXW, FOB, CFR, CIF, DDU. ...... | |
| Q5: How about your delivery time? | |
| A: 35 days for container order, 7-10 days for sample order. The specific delivery time depends on the items and the quantity of your order. | |
| Q6 Do you offer guarantee for the products? | |
| A: Yes, we offer 1 year warranty to our products. | |
| Q8: How do you make our business long-term and good relationship? | |
| A:1. We keep good quality and competitive price to ensure our customer`s benefit. | |
| 2. We respect every customer as our friend sincerely and hope to do long-term business and make friends with you, no matter where you come from |
