FP13000
Fullas

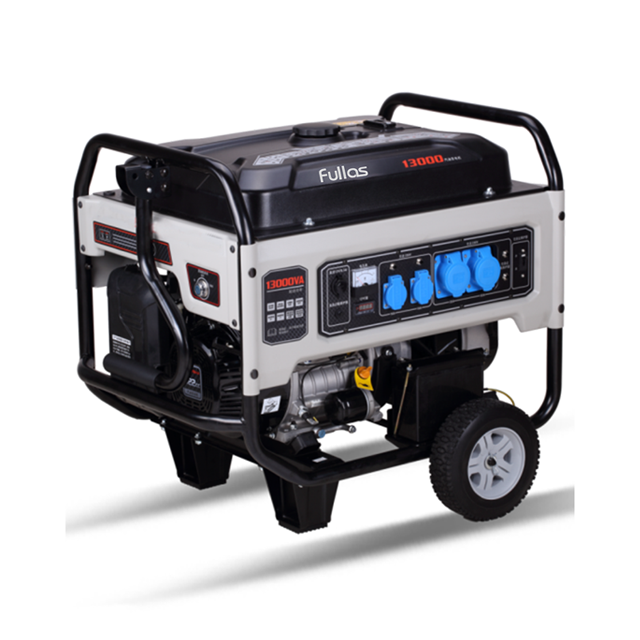

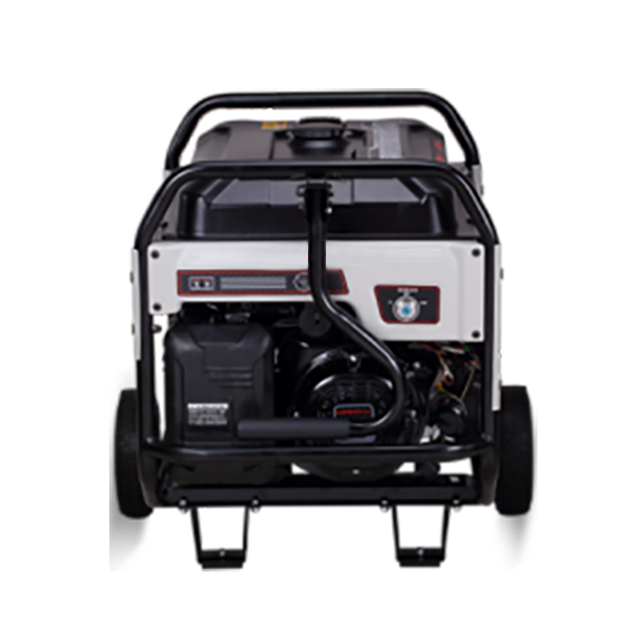

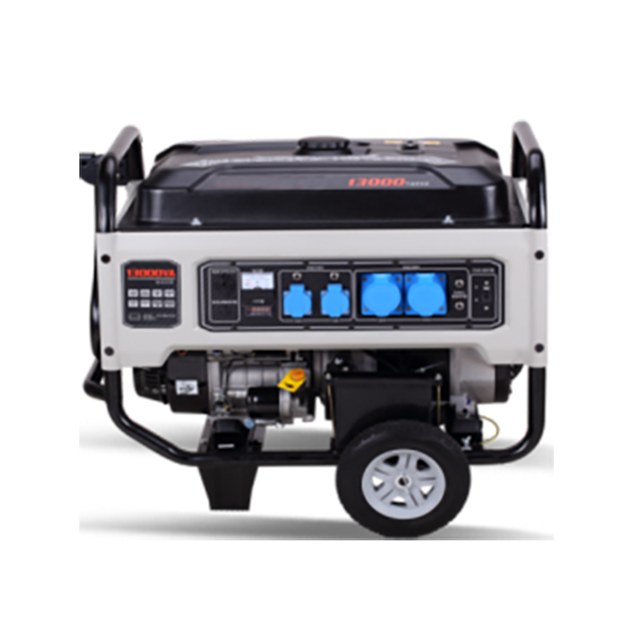

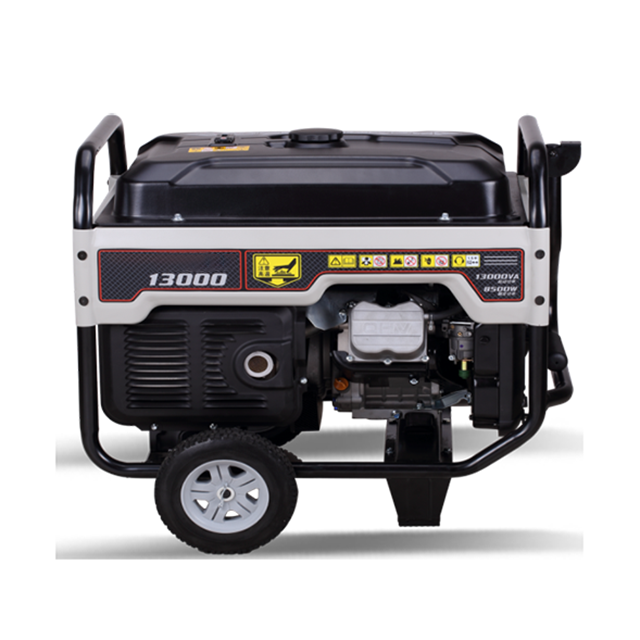

FULLAS Rated Power 13KW Gasoline Generator
1.Circulating load and constant load test: 1000 hours continuous running test per load type, failure-free.
Circulating load test process: From no-load (6 minutes), 25%, 50%, 75% to 100% load (15 minutes per step)
circulating, total circulating test time:1000 hours.
Constant load test: under full load situation, continuous running time:1000 hours.
2.Reinforced crankshaft neck design, better shock resistance. LC196F engine is designed for 1000 hours reliability.
3.Voltage Regulator uses aluminium alloy cover, better heat dissipation and water-proof performance, more reliable.
4.New air duct design, makes the temperature of alternator 20%lower than normal design, enhances the service life of generator.
5.More reliable choke switch, more efficient fuel switch.
6.48L fuel tank, continuous running time over 10 hours.
7.With both manual and electric starts, only Loncin has this design, even the battery is without power, it can be started by manual, more reliable under emergency use.
Generator parameter
| Model | FP13000D | FP13000DS | |
| Engine model | FP196FD | ||
| Type | Single cylinder, OHV, air-cooled, 4-stroke | ||
| Displacement(ml) | 620cc | ||
| Power out put | 13.3kw/3600rpm | ||
| Fuelconsumption | ≤374g/kw.s | ||
| Oil Capacity | 1.6L | ||
| Fuel tank capacity | 32L | ||
| Oil Capacity | 1.5L | ||
| Ignition system | Transistorized magneto | ||
| Starting system | Recoil/electric start | ||
| Displacement(ml) | 622CC | ||
| Charging current/ current DC | 12V/8.3A | ||
| Rated frequency | 50HZ | 60HZ | 50HZ |
| Rated voltage | 220V | 120/240V | 380V |
| Rated current | 39A | 79.2A/39.6A | 17.1A |
| Max current | 41A | 87.5A/43.8A | 18.1A |
| Rated output | 8.5kw | 9.5kw | 9kw |
| Max output | 9.5kw | 10.5kw | 10kw |
| Fuel tank capacity | 48L | ||
| Continuing | 10h | ||
| Net weight | 143kg | ||
| Dimension | 800*620*650mm | ||
Why choose us
Professional:We have more than 10 years experience in general industry.
And we cooperate with TTI, Generac ......
OEM/ODM: We can provide the OEM/ODM serive.
Resoureful: We have a factory in Vietam for better service.
Own location advantage as concentrating various general industry source in Chongqing.
FAQ
| Q1: Can we place a trial order to do some test? | |
| A: Sure, we have tested our products for many terms, also you can do more tests. Generally, trial order is also welcomed. We would like more new customers to place trial order. | |
| Q2: Do you accept OEM order? | |
| A: Yes, of course. We provide various OEM services. You can customize your favorite models or design a new model with our professional technological support. Our R&D department and manufacturing department will do together to ensure the quality and on time delivery. | |
| Q3: What is your terms of payment? | |
| A: T/T, L/C at sight, and Western Union are available for our company. | |
| Q4: What is yoUr terms of delivery? | |
| A: EXW, FOB, CFR, CIF, DDU. ...... | |
| Q5: How about your delivery time? | |
| A: 35 days for container order, 7-10 days for sample order. The specific delivery time depends on the items and the quantity of your order. | |
| Q6 Do you offer guarantee for the products? | |
| A: Yes, we offer 1 year warranty to our products. | |
| Q8: How do you make our business long-term and good relationship? | |
| A:1. We keep good quality and competitive price to ensure our customer`s benefit. | |
| 2. We respect every customer as our friend sincerely and hope to do long-term business and make friends with you, no matter where you come from |
