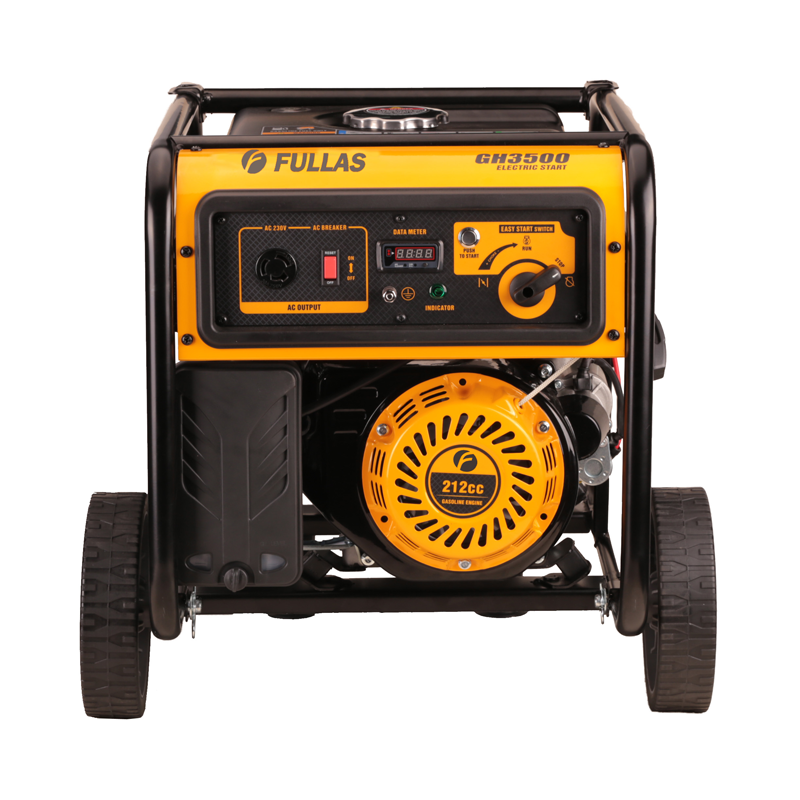

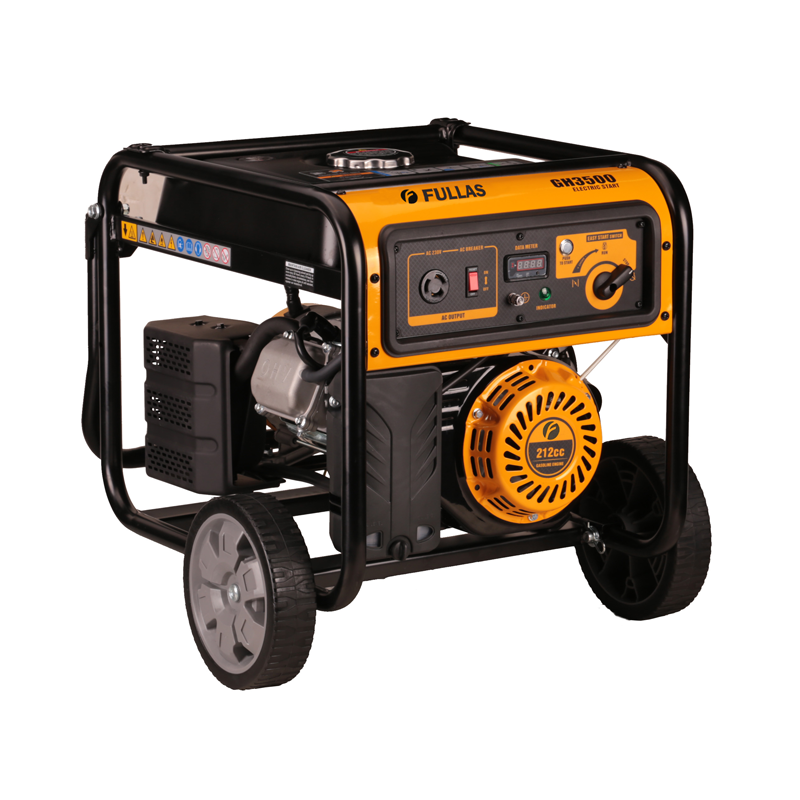

Fullas FP3500GH New Design 3KW Portable Gasoline/Petrol Generator Powered by G210F(D)A
Features
1.Metal control panel design;
2.Low of oil protection,100% copper self-excitation synchronization alternator;
3.AVR technology,overload,over-current protection;
4.High volume fuel tank,high strength frame;
5.Manual/Electric start optional;
Production line
Generator testing before offline
Products parameter
| Main parameters | FP2500GH | FP3500GH | |
| AC power parameters | AC output rated power | 2000W | 2700W |
| AC output maximum power | 2300W | 3000W | |
| Rated voltage (dual voltage) | 230V | 230V | |
| Rated frequency | 50Hz | 50Hz | |
| THD (at Pe) resistive load | <25% | <25% | |
| Generator parameters | Dimensions (mm) (without wheels and pushers) | 555x430x440 | 555x430x440 |
| Fuel tank capacity | 9L | 9L | |
| Net weight (kg) | 39.1 | 47.2 | |
| battery | 7Ah Lead-acid batteries | 7Ah Lead-acid batteries | |
| Rotating speed | 3000rpm | 3000rpm | |
| Insulation class | F class | F class | |
| Start method | Recoil/ electric start | Recoil/ electric start | |
| Use environment | 10ºC~+40ºC | 10ºC~+40ºC | |
| Machine reliability | 85%Pe constant load durability 800 hours | 85%Pe constant load durability 800 hours | |
| Engine parameters | Engine model | LC168F(D)-2 | G210F(D)A |
| choke | Manual choke | Manual choke | |
| Net power (kW/rpm) | 4.0/3000 | 4.7/3000 | |
| Speed control system | Mechanical speed regulation | Mechanical speed regulation | |
| Displacement | 196cc | 212cc | |
| Fuel volume | 0.6L | 0.6L | |
| fuel control system | Carburetor | Carburetor | |
| Fuel consumption (g/kW.h) | 50%Pe | <585<> | <585<> |
| 100%Pe | <432<> | <432<> | |
| Running time (h) | 50%Pe | 8 | 8 |
| 100%Pe | 6 | 6 | |
FAQ
| Q1: Can we place a trial order to do some test? | |
| A: Sure, we have tested our products for many terms, also you can do more tests. Generally, trial order is also welcomed. We would like more new customers to place trial order. | |
| Q2: Do you accept OEM order? | |
| A: Yes, of course. We provide various OEM services. You can customize your favorite models or design a new model with our professional technological support. Our R&D department and manufacturing department will do together to ensure the quality and on time delivery. | |
| Q3: What is your terms of payment? | |
| A: T/T, L/C at sight, and Western Union are available for our company. | |
| Q4: What is yoUr terms of delivery? | |
| A: EXW, FOB, CFR, CIF, DDU. ...... | |
| Q5: How about your delivery time? | |
| A: 35 days for container order, 7-10 days for sample order. The specific delivery time depends on the items and the quantity of your order. | |
| Q6 Do you offer guarantee for the products? | |
| A: Yes, we offer 1 year warranty to our products. | |
| Q8: How do you make our business long-term and good relationship? | |
| A:1. We keep good quality and competitive price to ensure our customer`s benefit. | |
| 2. We respect every customer as our friend sincerely and hope to do long-term business and make friends with you, no matter where you come from |
